SaFTFlo® Cap Adapters - The Key

The SaFTFlo® Cap Adapter is a critical component to the closed-loop system, as it serves as the key to ‘unlock’ the chemical from the container when needed for dispensing.

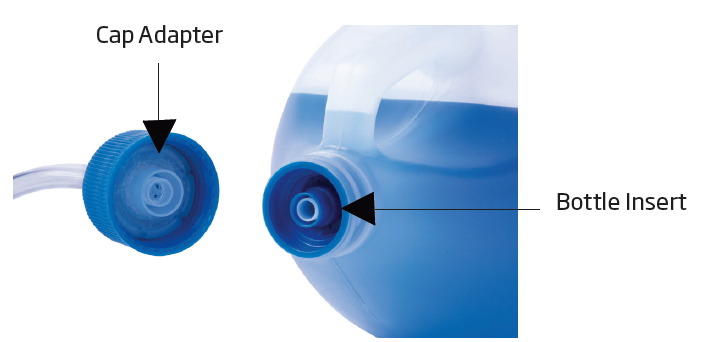

To dispense chemical, the end-user, removes the ship cap, and replaces by attaching the cap adapter onto the neck of the container fitted with a bottle insert.

When the cap adapter or ‘key’ is connected, an umbrella valve opens the spring-loaded valve in the insert to ‘unlock’ the chemical from the container, taking it directly into the dispenser with no contact to any handlers.

When the cap adapter is removed from the container, the valve closes automatically to lock the chemical in the container, to help prevent leaks or spills.

The SaFTFlo® cap adapter is available in an extensive range of sizes, two flow rates, and numerous material options to accommodate a wide range of chemicals.

SaFTFlo® Cap Adapter
Lock and Key

Benefits

  • Allows chemical flow within a closed-loop system
  •  Allows for safe dispensing of harmful chemicals
  •  Works with both portable and static dispensers
  • Compatibility with a large range of chemicals
  • SaFTFlo® has the largest range of Cap Adapters on the market

Key Features

  • Flow rates: Standard and medium
  •  Top housing customization options: straight barb, smooth push lock, 90º barb, 90º dual port barb
  • Sizes: 28 mm, 38 mm, 40 mm, 53 mm, 60 mm, 63 mm, 70 mm, Bungs
  • Materials: Polypropylene, Kynar, EPDM, Metallocene, Viton
  • Key locks available
  • For color options please contact your sales representative

Cap Adapter Variations

90 degree fixed
90 degree swivel2
dual port cap adapter
NPT Cap Adapter side

90º Fixed Barb

For tight fitting environments

90º Swivel Barb

For tight fitting environments with additional flexibility

Dual Port

For dual dilution and dispensing

NPT Adapter

To allow for connection directly from the mains water source or more industrial environments.

For the USA market only. (NPT = National Pipe Thread)

For superior performance results, use the SaFTFlo® Cap Adapters in conjunction with our full line of liquid containment and dispensing products from the SaFTFlo® Fluid Management Systems.

SaFTFlo® Cap Adapters – The Key Document Download
